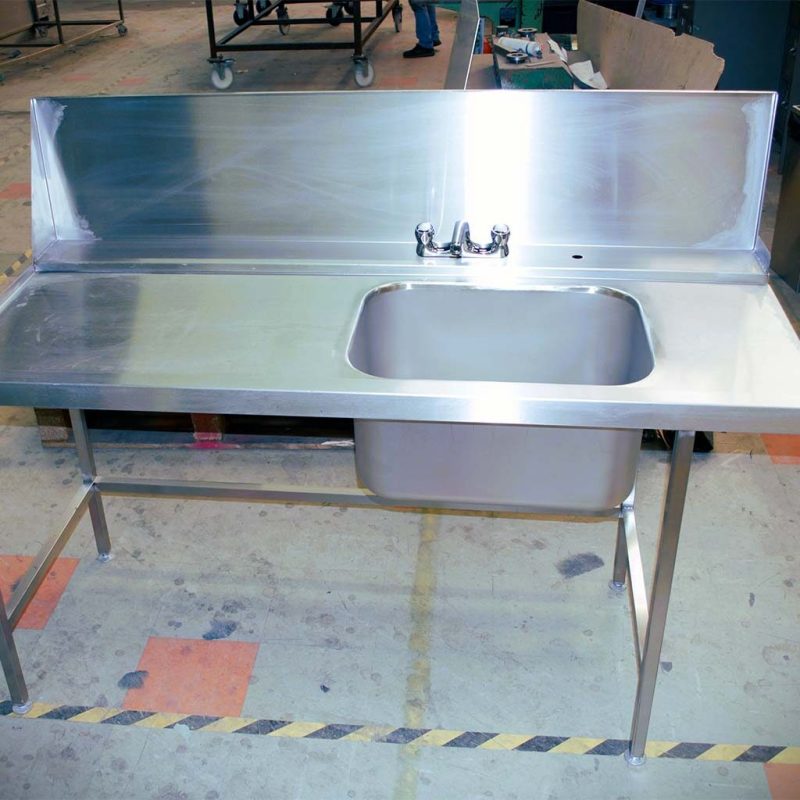

SINKS
Manufactured from 1.2mm thick, grade 304, satin polished, stainless steel with 610mm x 455mm x 300mm deep bowls, 11/2” BSP standpipe strainer wastes, grade 430 stainless steel, 30mm square tubular stand, under-shelf and adjustable feet (fully welded).
Alternative bowls and sizes available on request.

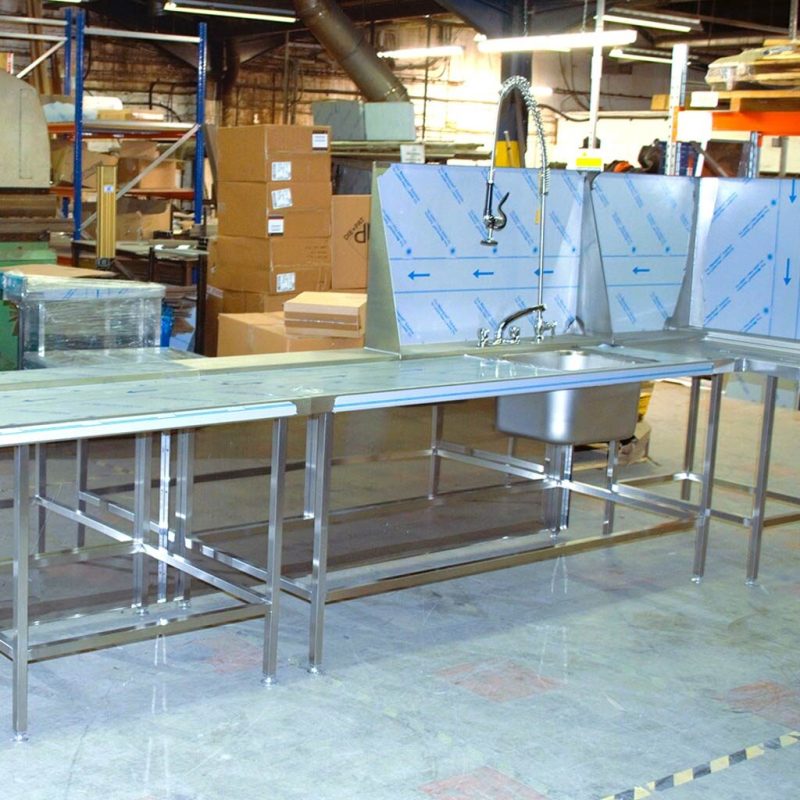

TABLES
Manufactured from 1.2mm thick grade 304, satin polished, stainless steel with a 430 stainless steel, 30mm square tubular stand, under shelf and adjustable feet (fully welded).

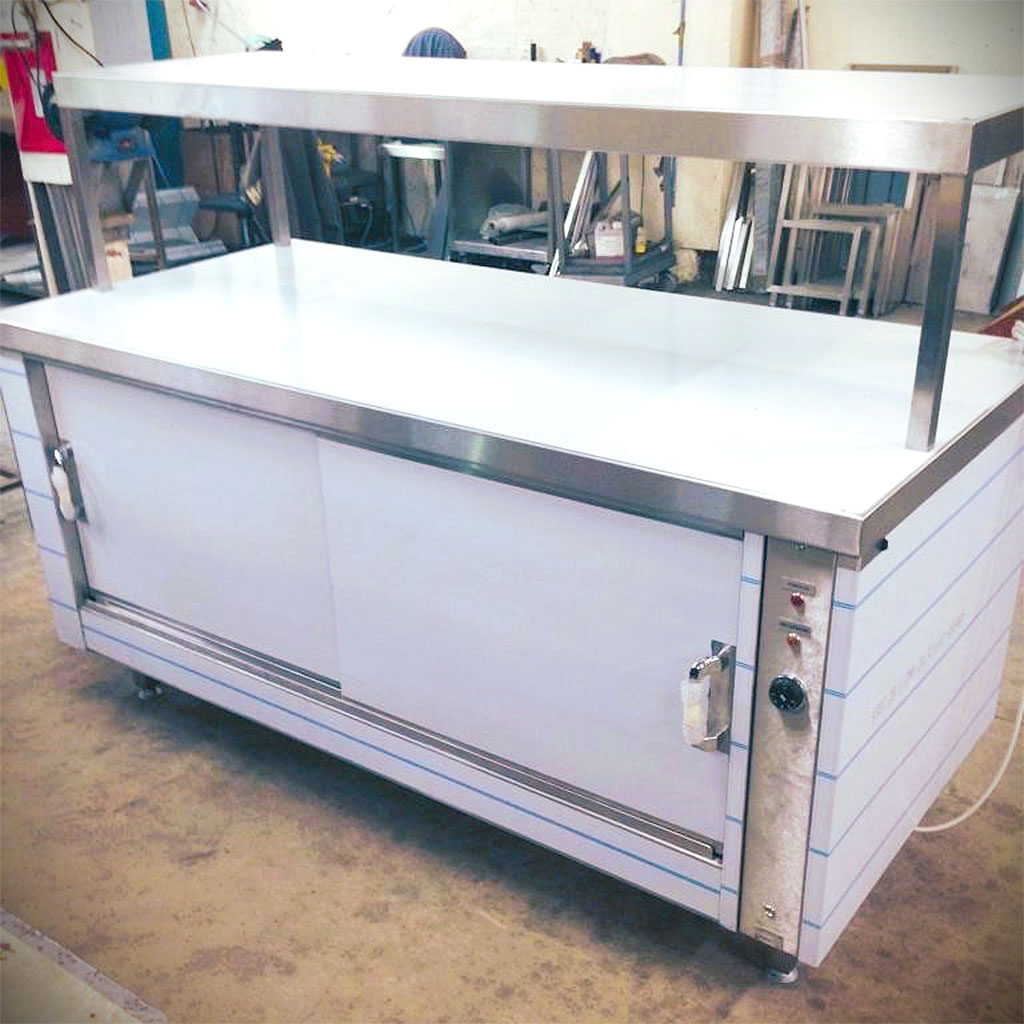

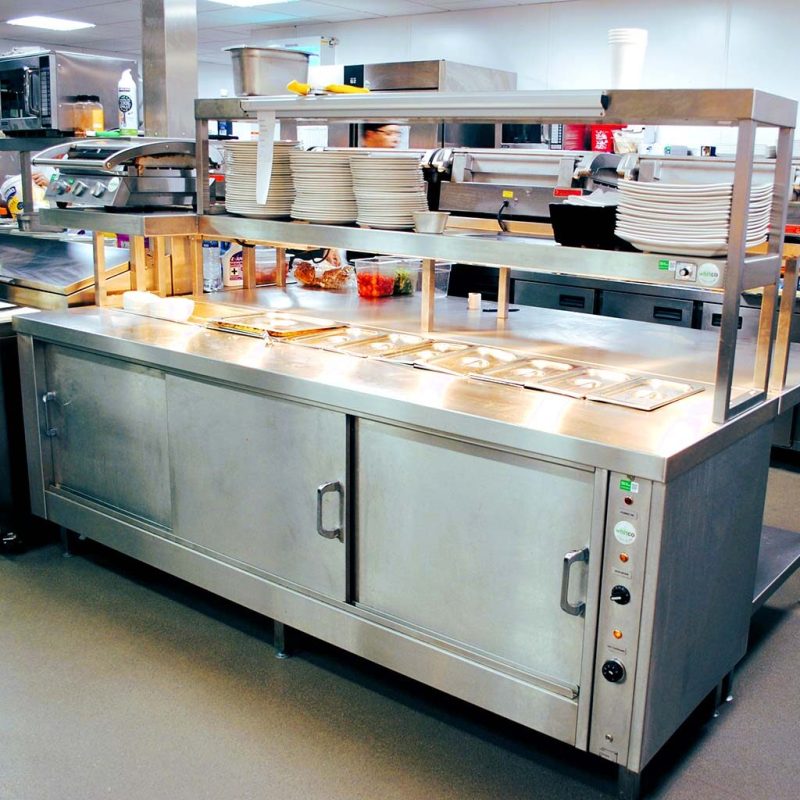

HOT CUPBOARDS/BAIN MARIES
Manufactured from 1.2mm thick grade 304, satin polished, stainless steel with sliding doors, fully insulated, adjustable feet, internal shelf and thermostatically-controlled, electric heating.
A thermostatically controlled, electrically heated dry or wet heat Baine Marie well can also be installed. The gastronorm containers and gantries are not supplied standard, as shown, but available as optional extra.

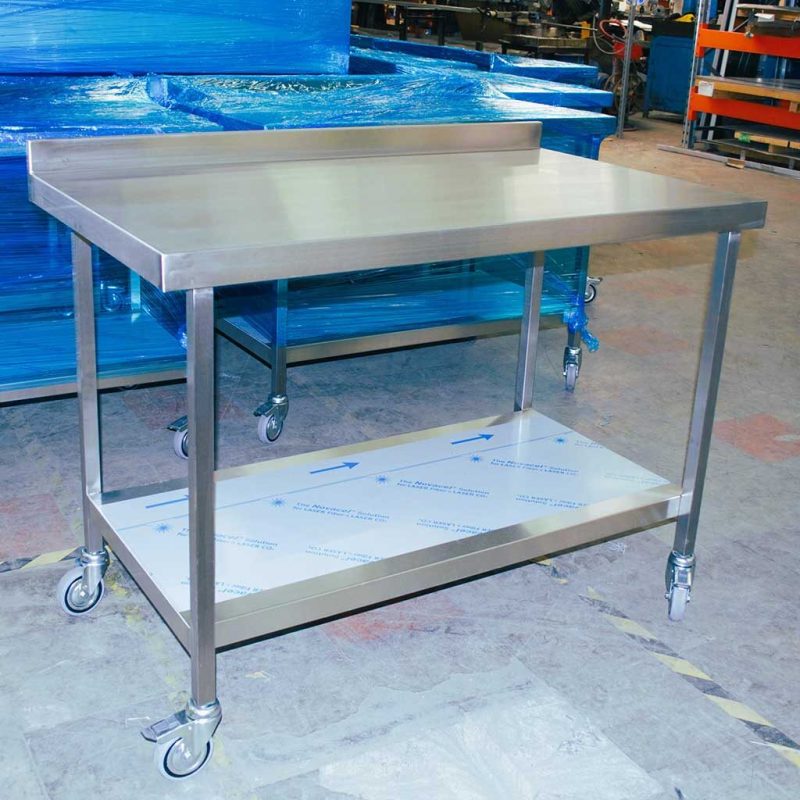

TROLLEYS
Manufactured from grade 304, satin polished, stainless steel removable shelves with grade 430 stainless steel, 30mm square tubular frame and four 100mm castors (two with brake).
CUPBOARDS
Manufactured from 1.2mm thick grade 304, satin polished, stainless steel with 430 stainless steel, 30mm square tubular frame, internal shelf and adjustable feet.

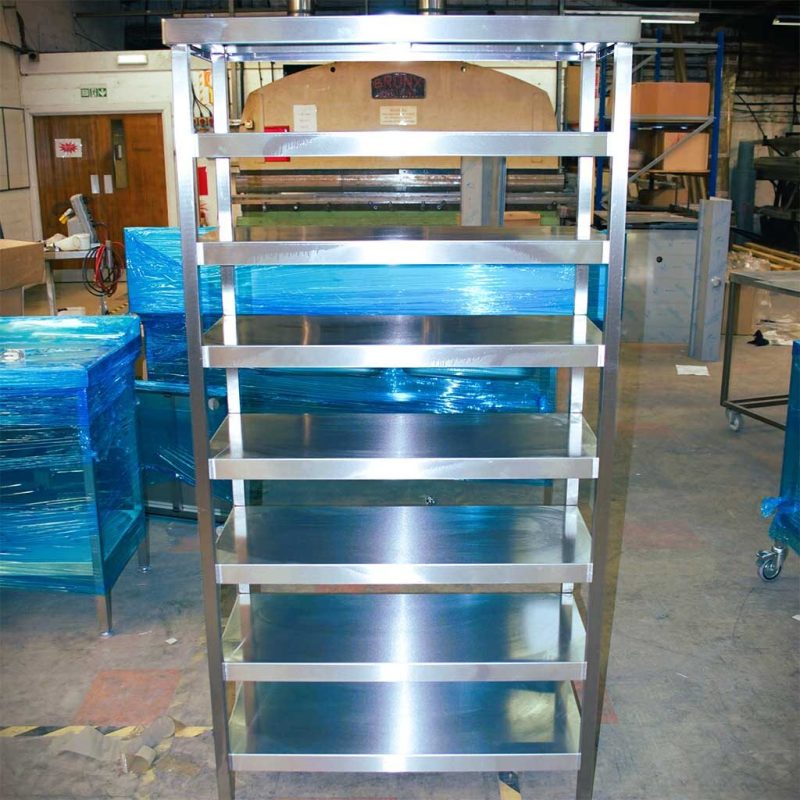

SHELVES/STORAGE RACKS
Manufactured from 1.2mm thick, grade 304 satin polished stainless steel with grade 430 stainless steel, 30mm square tubular frame with adjustable feet.

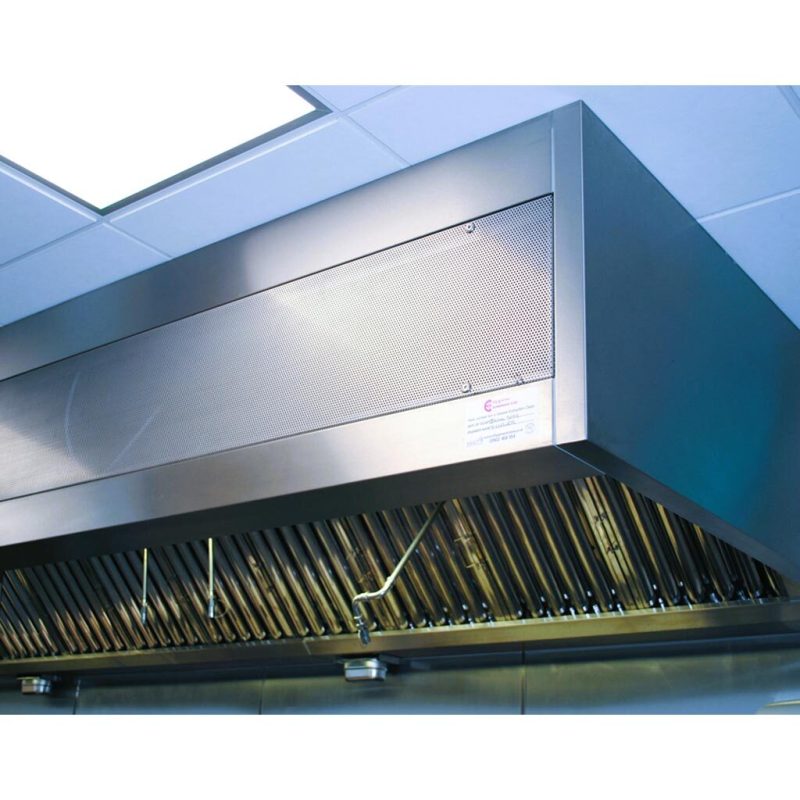

COMPENSATION AIR CANOPY

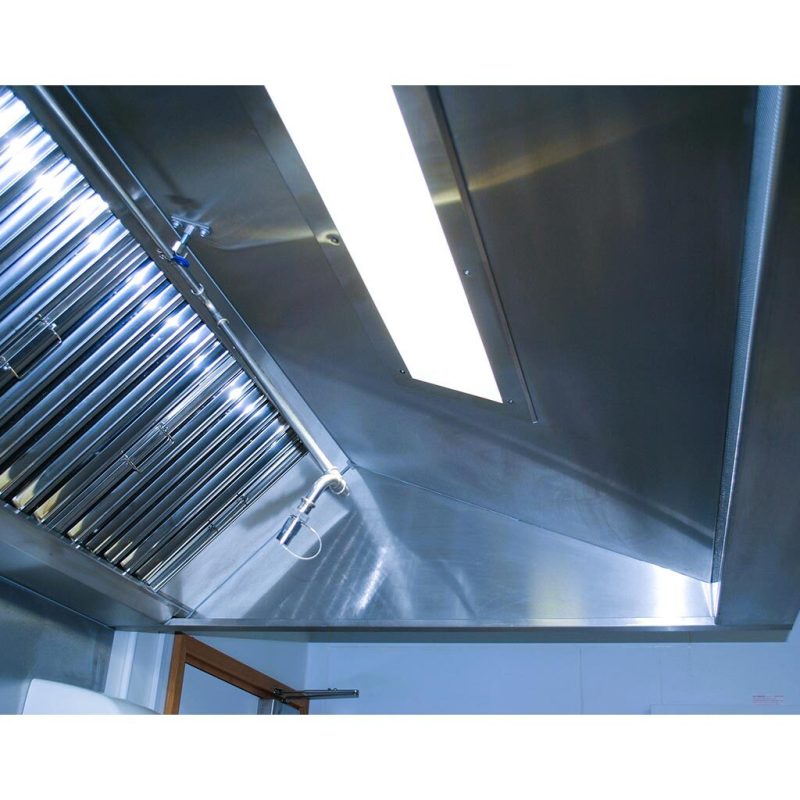

EXTRACTION CANOPIES
Extraction canopies are used to extract cooking fumes or steam and to filter any grease, therefore improving the working environment within the kitchen. Canopies are manufactured from 1mm thick grade 304, satin polished, stainless steel with removable, washable, stainless baffle grease filters and a stainless steel drip tray. Standard construction is by welding.
All canopies are manufactured to order, therefore alternative sizes and specifications are available on request. DW172 compliant, an installation service is available with expert advice from our technical staff.

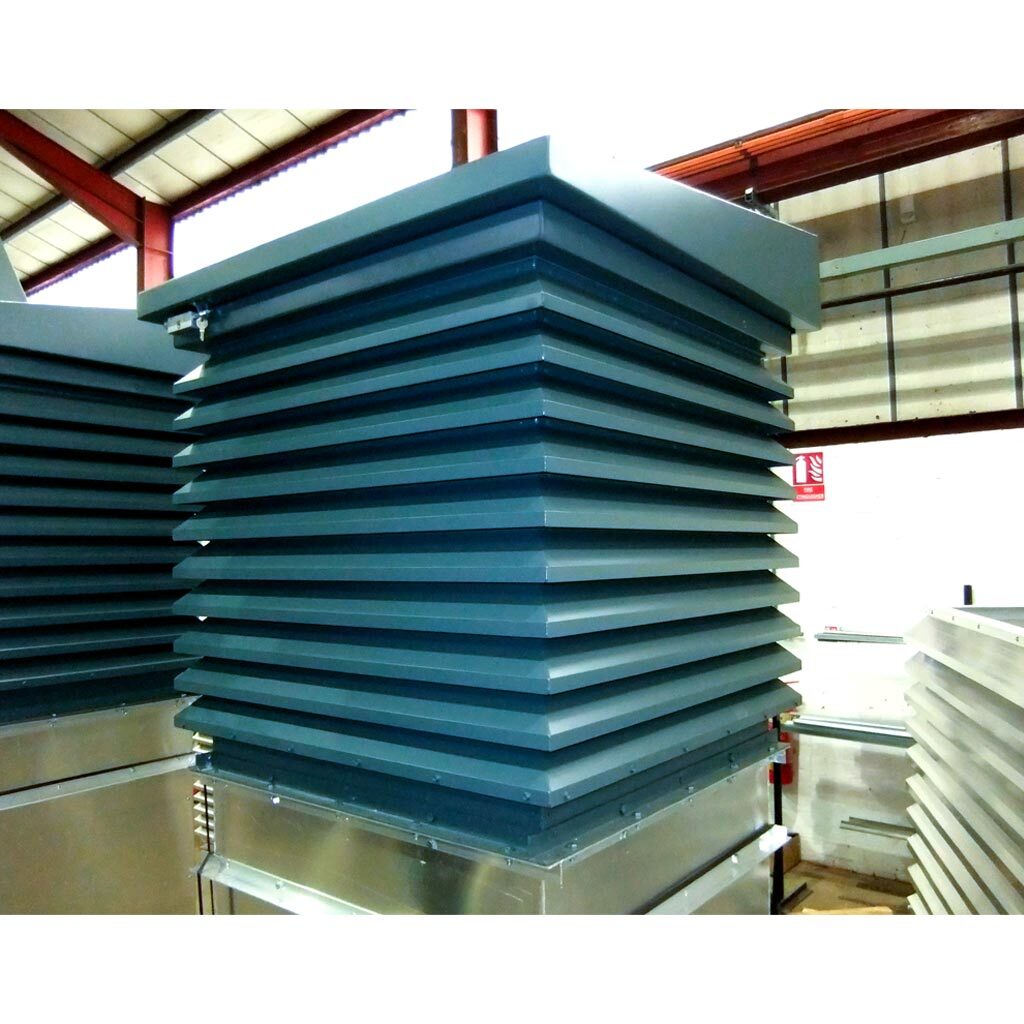

WINDVENTS
Midtherm Windvents operate on aerodynamic principles. They are driven by the provision of an air thermal effect with the corresponding extraction rate flow and a natural function of balance and equilibrium. To activate the process, the only energy required is for a low voltage controller unit that drives the dampers, modulating the input of natural air.
Schools and commercial buildings where Windvents have been installed have gained from reduced CO2 emissions, energy savings and occupants’ well-being. A fresh cool air supply delivered via natural ventilation has been proven to reduce staff sickness, reduce energy waste and increase occupants’ productivity compared to offices that have no provision to ventilate automatically.
